Ground Screw
Material: Q235
Surface Treatment: Hot-dip galvanizing, average coating thickness 80μm
Applicable cohesive soil N-value range: 2–20
Applicable sandy soil N-value range: 2–15
Features:
· Customizable
· Affordable, safe, height-adjustable, and strong pull-out strength
· Easy on-site construction, short construction period
· Easy to move and reusable in different locations
Quality assurance: 12 years
Durability: 25 years

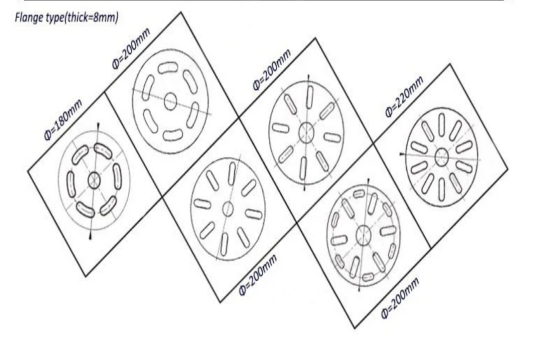

![MN(`ZT}{T_(D9(M9_}]WURB.png](/../../upload/image/20240829/6386055862360582107008553.png)
Special note:
1. Customizable.
2. Affordable, safe, adjustable height, and high pull-out strength.
3. The on-site construction is simple and the construction period is short.
4. Easy to move and can be reused in other locations.
スクリュー杭 |
長さ*φ*厚み | 重量 | 梱包 | 総重量 |
L1600*76*3.0 | 9.8 kg | 180 PC/pallet | 1800kg |
L1800*76*3.0 | 10.72kg | 160 PC/pallet | 1750kg |
L2000*76*3.0 | 11.8 kg | 150 PC/pallet | 1805kg |
L2200*76*3.0 | 12.8kg | 140 PC/pallet | 1830kg |
L2500*76*3.0 | 14.25kg | 120 PC/pallet | 1745kg |
L2800*76*3.0 | 15.7kg | 110 PC/pallet | 1760kg |
L3000*76*3.C | 16.8kg | 110 PC/pallet | 1885kg |
